Fuso Turbo Intercooler
220 PS

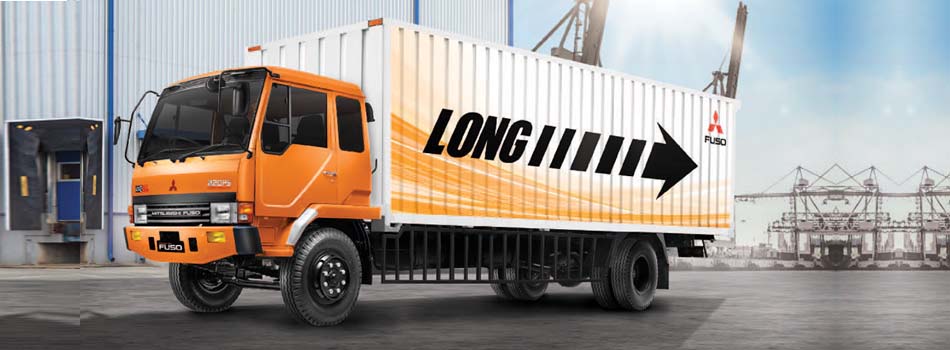

FUSO FM 517 HL LONG (4 X 2)
4x2
IDR
Performa
Tipe mesin

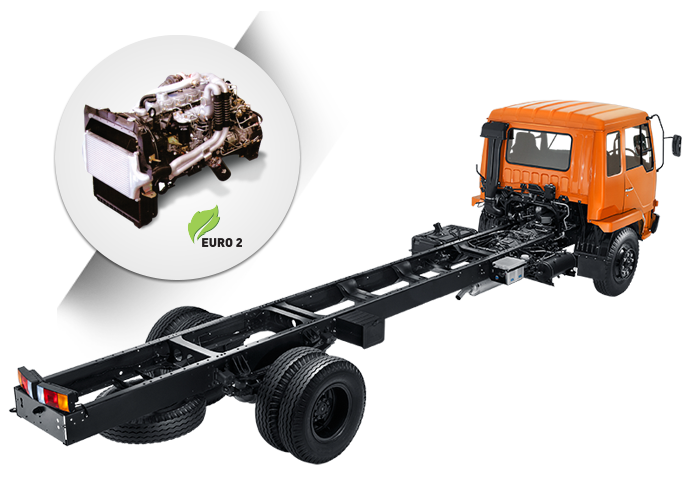

Mesin tangguh dan chassis kokoh. MESIN 6D16-3AT2 TURBO INTERCOOLER, Mesin Legendaris, Terkenal Tangguh, Kuat dan Mudah Perawatan.
Chassis
Diperkuat dengan Cross Member & Stiffeners, tebal, kuat & kokoh.
Tipe Karoseri
Motor Carrier
Box Besi

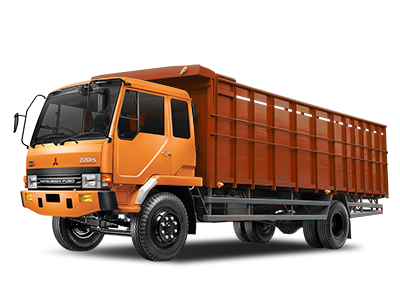

Bak Kayu
Info Produk

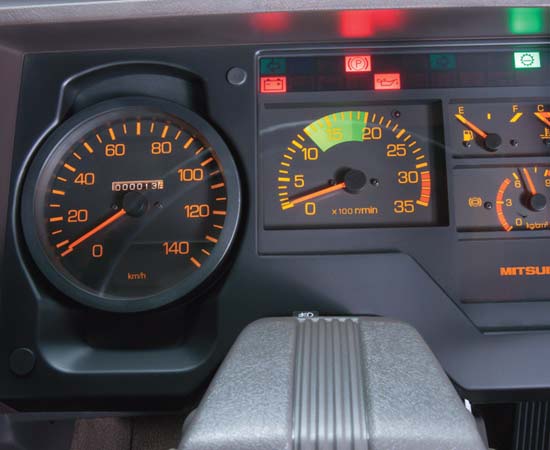

Tachometer
Mempermudah penyelarasan putaran mesin dengan kecepatan kendaraan, agar irit BBM
Radio/Cd/Mp3
Menambah kenyamanan di sepanjang perjalanan.
| MODEL | FUSO FM 517 HL LONG | |

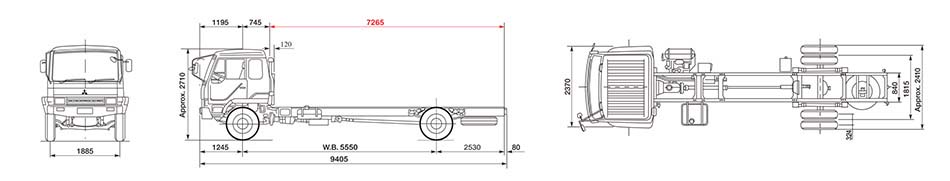

| Dimensi | ||
| Jarak Sumbu Roda | mm | 5.550 |
| Panjang Keseluruhan | mm | 9.405 |
| Lebar keseluruhan | mm | 2.425 |
| Tinggi keseluruhan | mm | 2.725 |
| Tinggi minimal dari tanah | mm | |
| Jarak roda depan kiri-kanan | mm | 1.885 |
| Jarak roda belakang kiri-kanan | mm | 1.815 |
| Berat | ||
| Berat Chassis | kg | 4.640 |
| Max G.V.W | kg | 14.030 |
| Max G.C.W | kg | |
| Berat Chassis | kg | |
| Kemampuan | ||
| Kecepatan maksimum | km/jam | 96 |
| Daya tanjak dengan max G.V.W | tan | 44 |
| Radius putar minimum | m | 9.7 |
| Roda | ||
| Roda | 10.00-20-16PR | |
| Velg | ||
| Mesin | ||
| Model | 6D16-3AT2 | |
| Tipe | Mesin diesel 4 langkah, pendingin air, injeksi langsung dengan turbo intercooler | |
| Diameter X langkah | mm | 118x115 |
| Jumlah silinder | cc | 6 segaris |
| Isi S silinder | 7.545 | |
| Daya maksimum | PS/rpm | 220/2800 |
| Torsi maksimum | Kg.m/rpm | 65/1400 |
| Isi Silinder | ||
| Isi Silinder | ||
| Transmisi | ||
| Model | M8S6 | |
| Tipe | 6 gigi maju, 1 gigi mundur | |
| Perbandingan gigi | 7.814-4.506-2.690-1.621-1.000-0.894 Rev 6.849 | |
| Kopeling | ||
| AS | ||
| Depan | ||
| Belakang | ||
| Perbandingan gigi akhir | ||
| Setir | ||
| Tipe | ||
| Suspensi | ||
| Depan | Laminateda leaf spring with shocks absorbers | |
| Belakang | Inverted & laminated leaf spring with Trunnion Base & Radius Rods | |
| Rem | ||
| Rem kaki | Air over hydraulic with dual circuit | |
| Rem Tangan | Int. Expand Type on Propeller Shaft | |
| Rem Pembantu | Exhaust Brake | |
| Sistem kelistrikan | ||
| Tegangan | 24 | |
| Accu | ||
| Kapasitas bahan bakar | ||
| Tangki | liter | 200 |
| Kapasitas pengemudi | ||
| Kabin pengemudi | ||
