Fighter FN 62 FL HD
270 PS
Fighter FN 62 FL HD
6x4
IDR
Performa
270 PS Common Rail EURO 3
Dengan tenaga 270 PS menggunakan sistem Common Rail yang dikontrol oleh Electronic Control Unit (ECU).
Tipe Karoseri

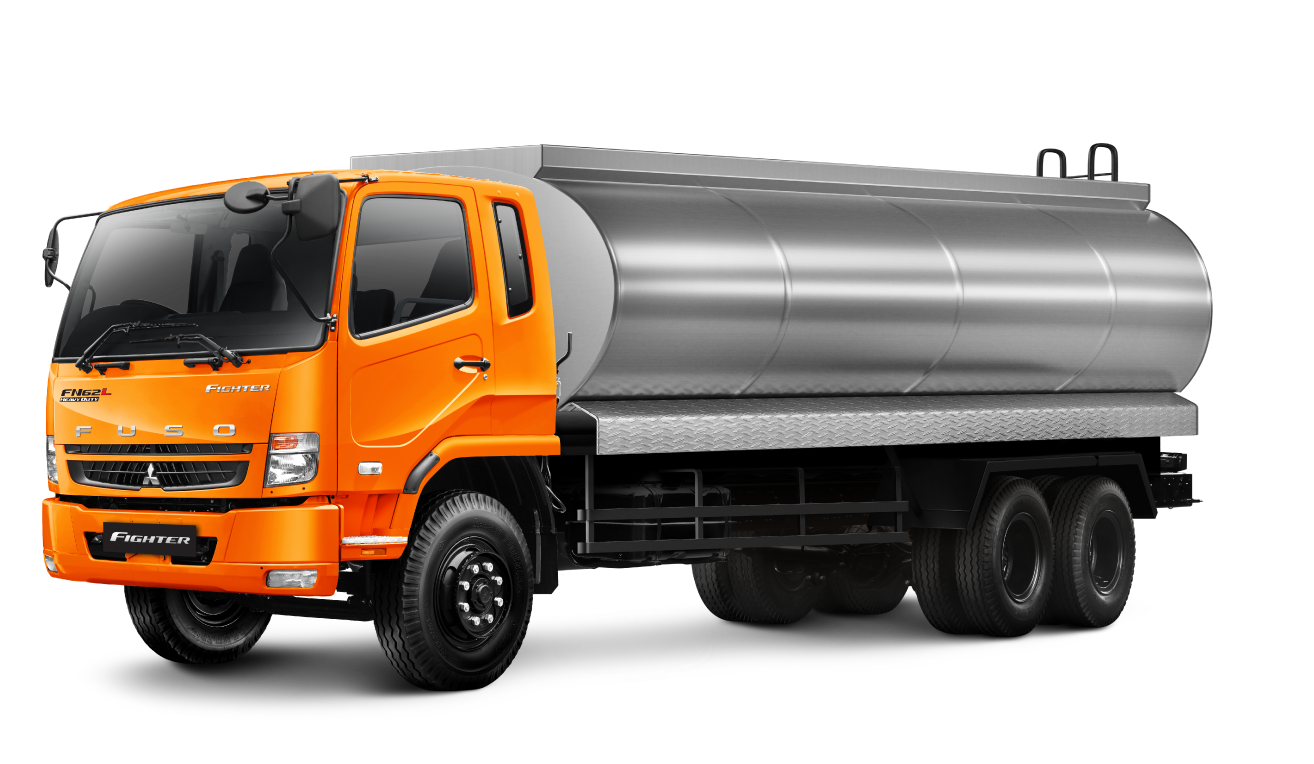

Karoseri Tangki

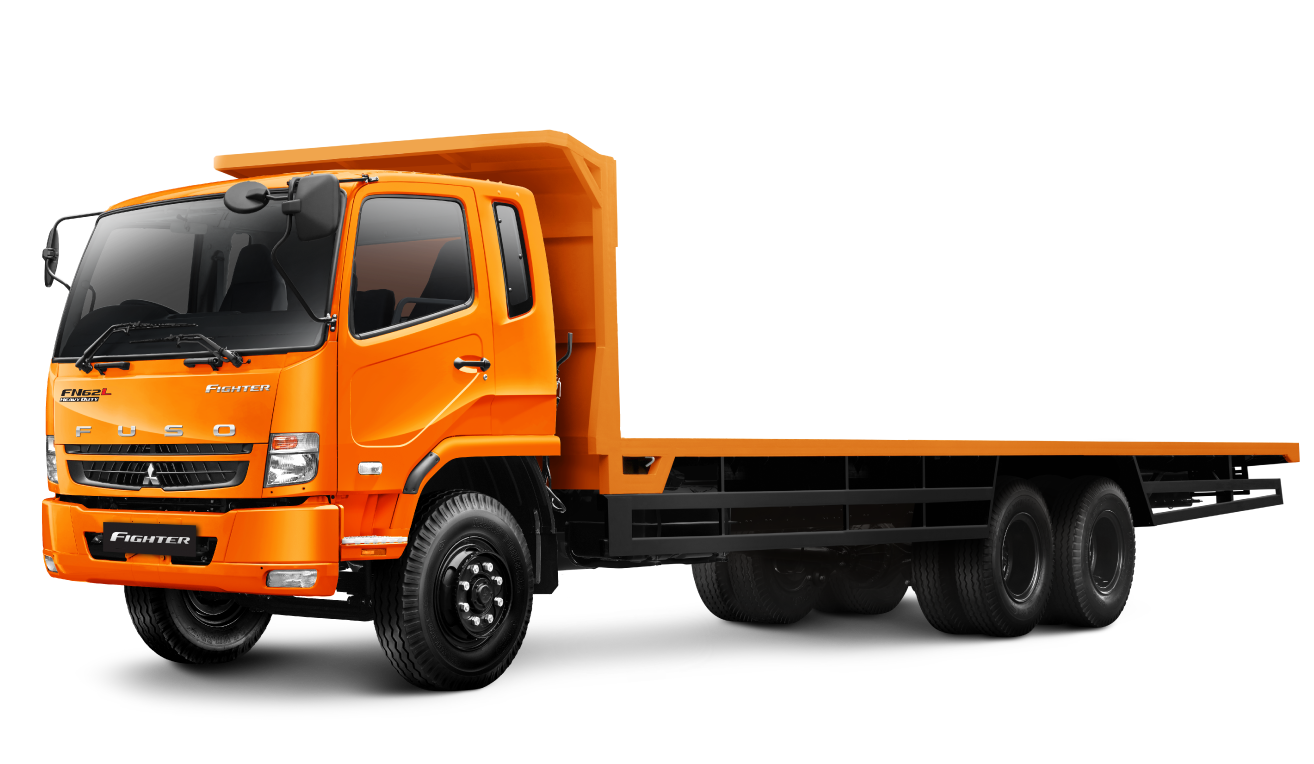

Karoseri Flat Bed

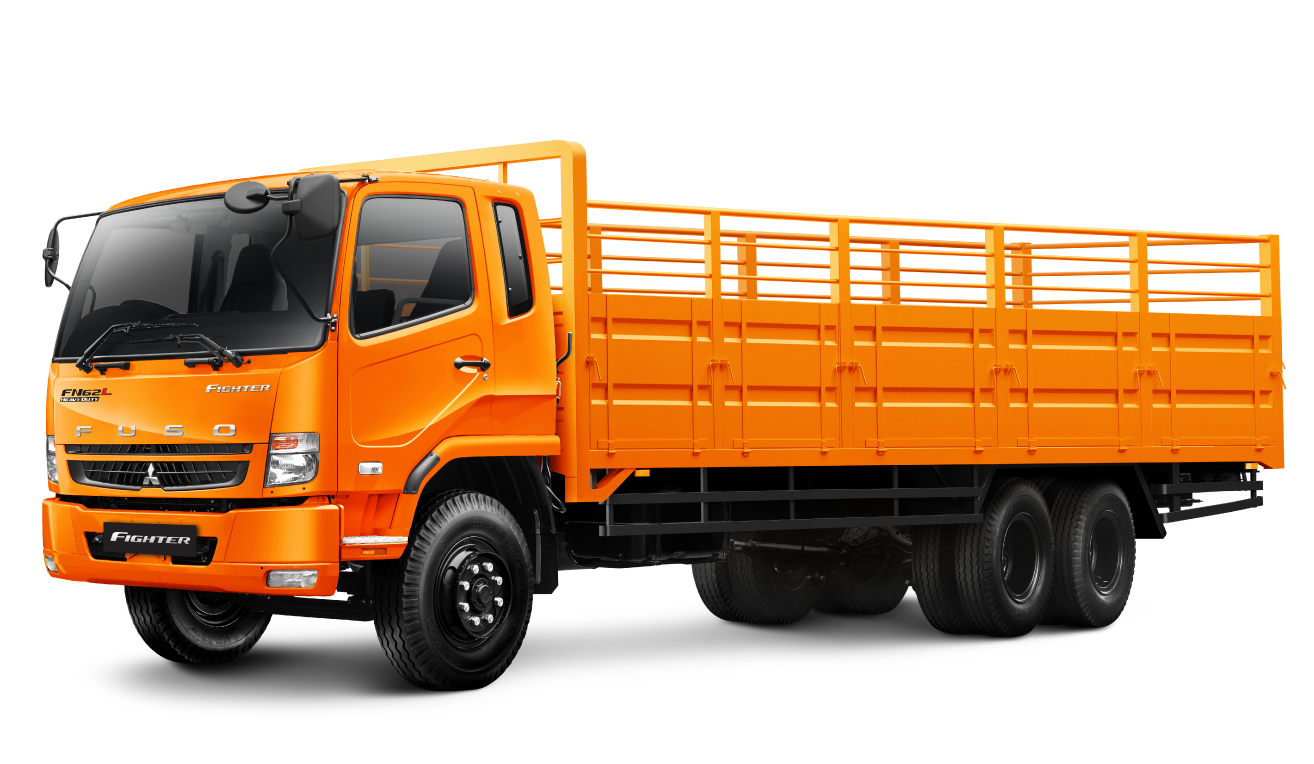

Karoseri Rak Besi
Info Produk
Chasis Kuat
Kokoh untuk menopang lebih banyak muatan, didesain tebal dan tanpa sambungan dengan posisi kelingan / rivet di sisi samping untuk meningkatkan daya tahan chassis dan memudahkan pemasangan Rear Body.
Kabin Luas
Ruang kabin luas, dilengkapi air suspension pada kursi pengemudi.
| DIMENSI | ||
| Jarak Sumbu Roda | mm | 7.19 |
| Panjang Keseluruhan | mm | 11.085 |
| Lebar Keseluruhan | mm | 2.455 |
| Tinggi keseluruhan | mm | 2.71 |
| Jarak roda depan kiri-kanan | mm | 1.925 |
| Jarak roda belakang kiri-kanan | mm | 1.845 |
| Cab to End | mm | 9.095 |
| BERAT | ||
| Berat Chassis | Kg | 7.185 |
| Max G.V.W | Kg | 26 |
| KEMAMPUAN | ||
| Kecepatan maksimum | Km/Jam | 74 |
| Daya tanjak dengan max G.V.W | % | 51.5 |
| Radius putar minimum | m | 11 |
| MESIN | ||
| Model | - | 6M60-1AT2 |
| Tipe | - | Common Rail System, 4 Stroke-cycle water cooled direct injection turbocharged diesel engine |
| Diameter X langkah | mm | 118 x 115 |
| Isi Silinder | cc | 7.545 |
| Daya maksimum | PS/rpm | 270 / 2600 |
| Torsi maksimum | Kg.m/rpm | 80 / 1400 |
| TRANMISI | ||
| Model | - | EATON ES-11109 |
| Tipe | - | 9 Forw. & 1 Rev. |
| Perbandingan gigi | - | 12.640 - 8.810 - 6.550 - 4.770 - 3.550 - 2.480 - 1.850 - 1.340 - 1.000 -perbandingan gigi akhir 13.21 |
| SETIR | ||
| Tipe | - | Ball nut type with integral type power booster. Telescopic and tilt steering column with steering lock |
| SUSPENSI | ||
| Depan | - | Laminated Leaf Springs with Shock Absorbers |
| Belakang | - | Inverted and laminated leaf springs with trunnion base and radius rods |
| REM | ||
| Rem kaki | - | Air Over Hydraulic with Dual Circuit |
| Rem Tangan | - | Internal expanding type on propeller shaft (Parking brake dia. 305mm) |
| Rem Pembantu | - | Exhaust brake |
| RODA | ||
| Roda | Ban Depan | Tunggal, 11.00-20-16PR |
| Roda | Ban Belakang | Ganda, 11.00-20-16PR |
| SISTEM KELISTRIKAN | ||
| Tegangan | Volt | 24 |
| Accu | Volt | 2x12V, 56Ah (5hr rate) ; 70Ah (20hr rate) |
| KAPASITAS BAHAN BAKAR | ||
| Tangki | Liter | 200 |
