Fighter FN 61 FL HD
Fighter FN 61 FL HD
6x2
IDR
Performa

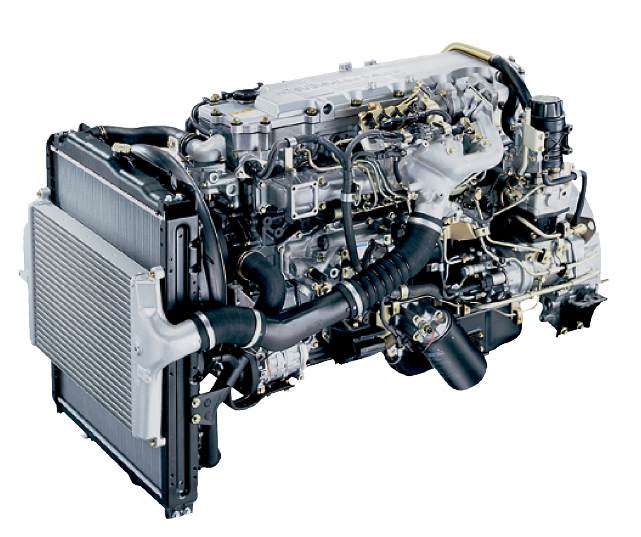

270 PS Common Rail EURO 3
Dengan tenaga 270 PS menggunakan sistem Common Rail yang dikontrol oleh Electronic Control Unit (ECU).
Tipe Karoseri

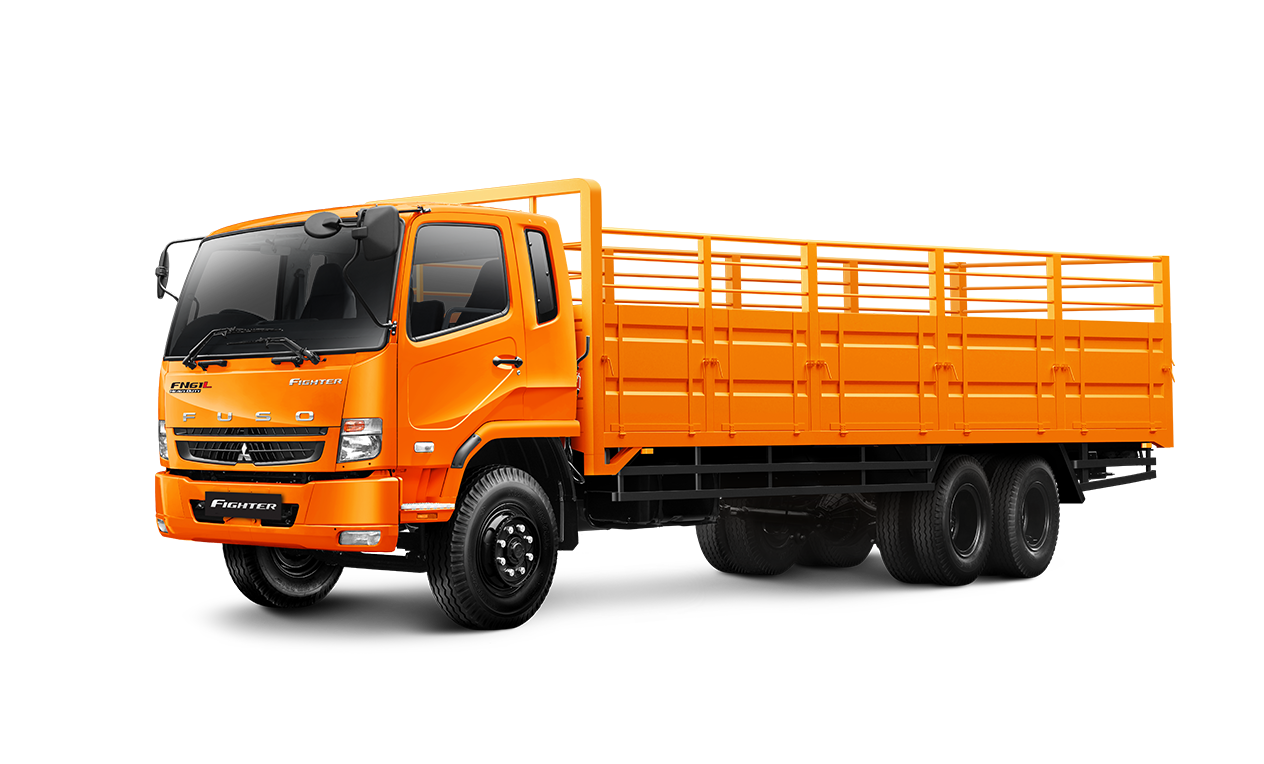

Karoseri Bak Besi

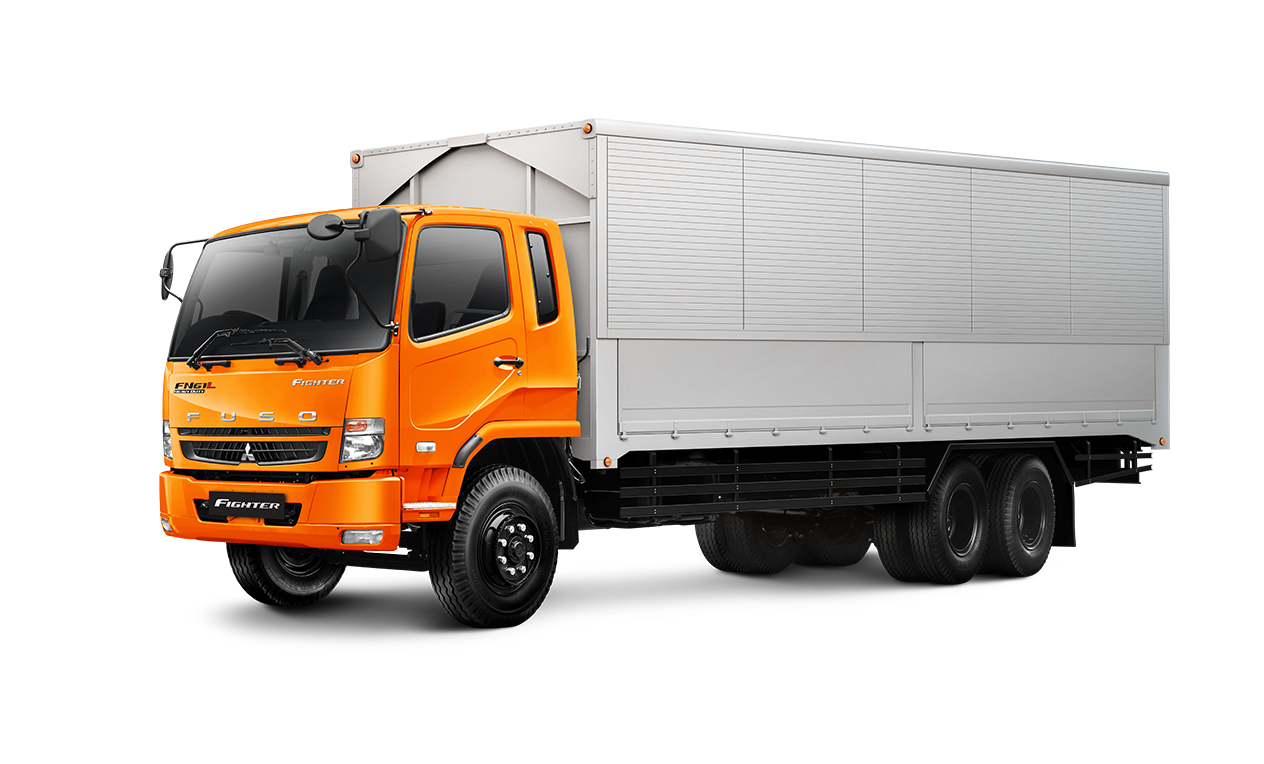

Karoseri Wing Box

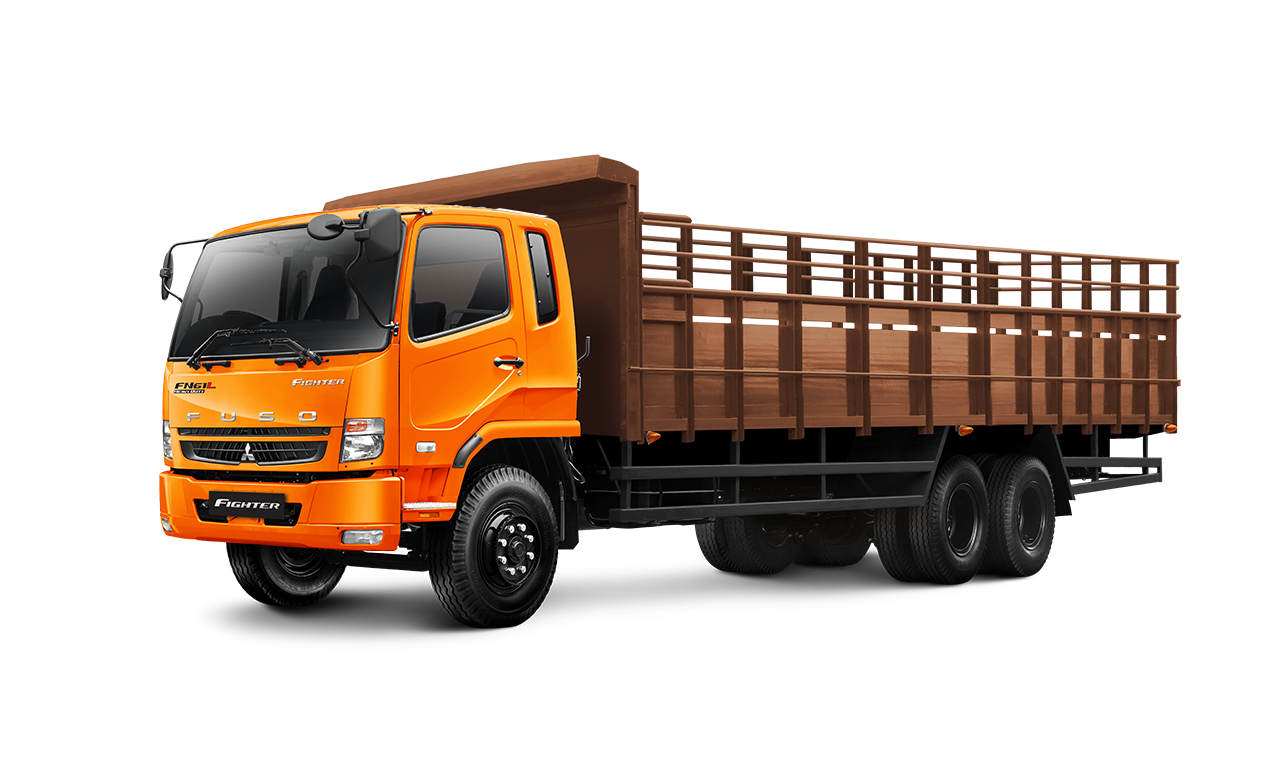

Bak Kayu

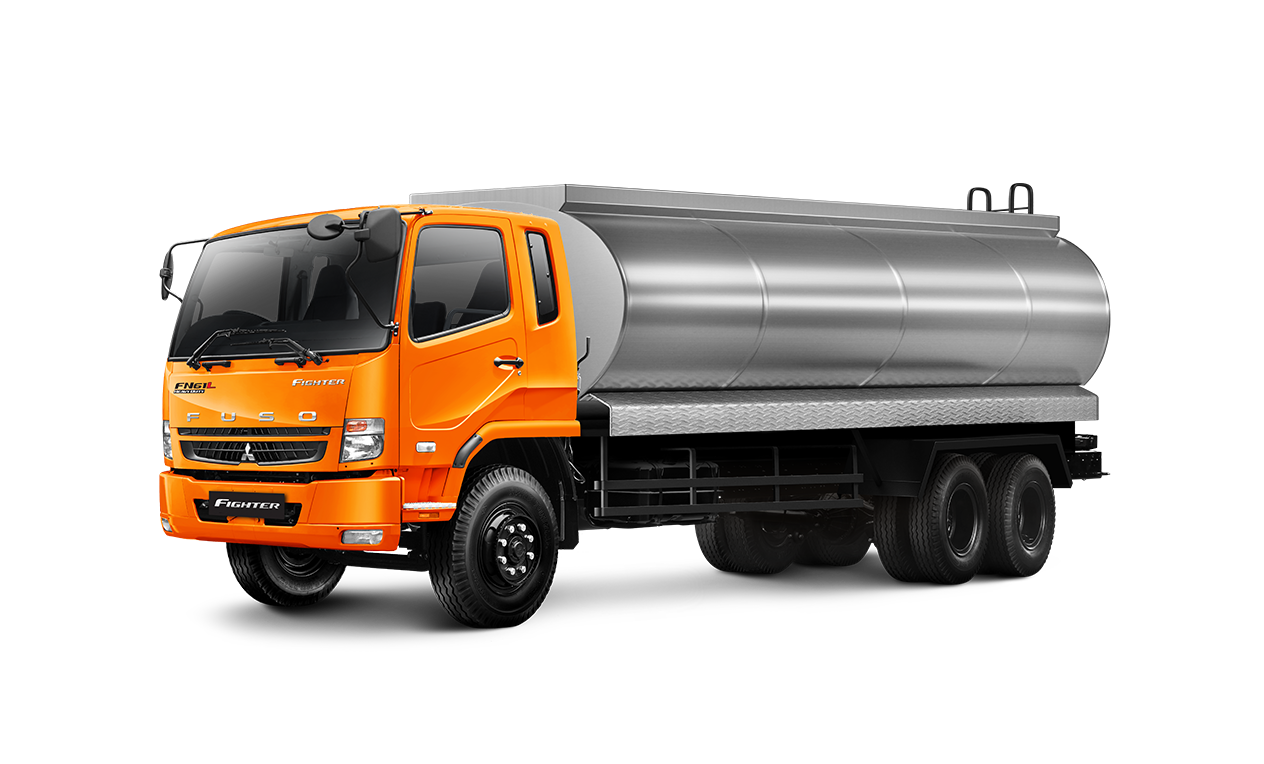

Karoseri Tanki

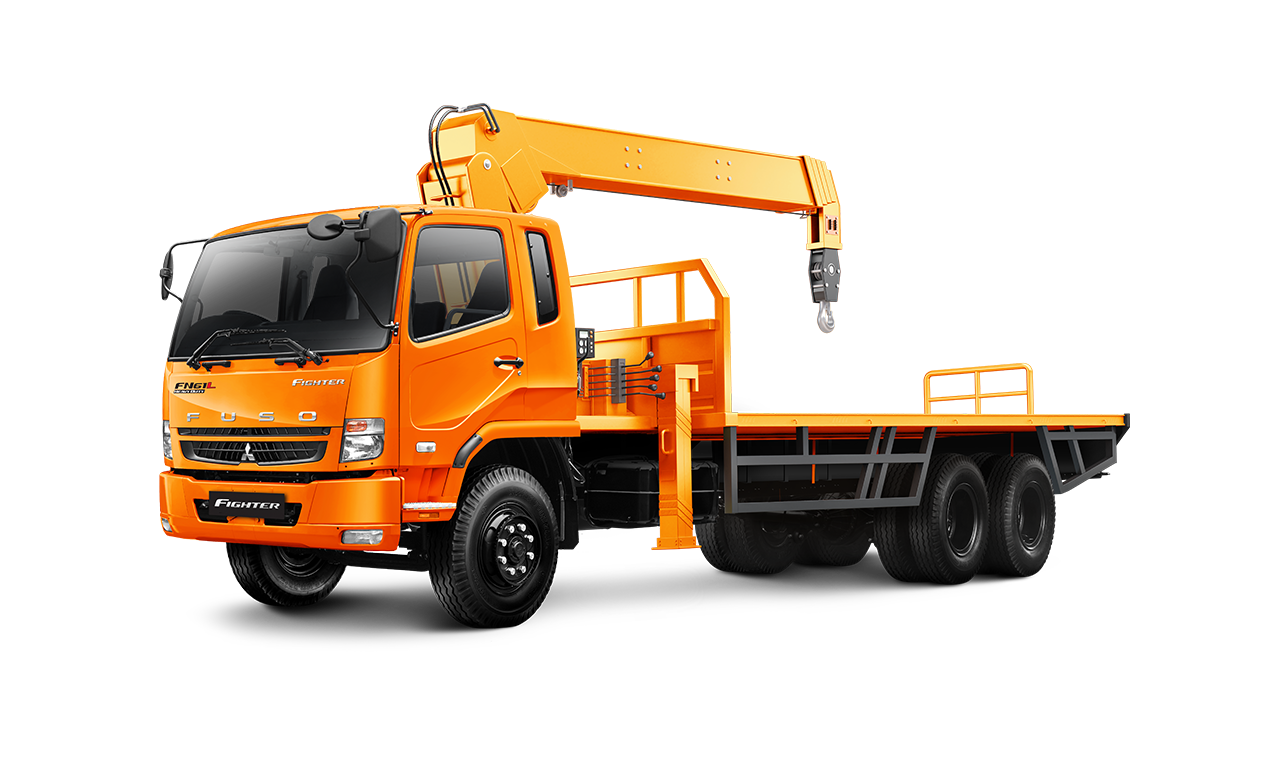

Karoseri Flat Deck Crane
Info Produk
Chassis Kuat
Kokoh untuk menopang lebih banyak muatan, didesain tebal dan tanpa sambungan dengan posisi kelingan / rivet di sisi samping untuk meningkatkan daya tahan chassis dan memudahkan pemasangan Rear Body.
Kabin Luas
Ruang kabin luas, dilengkapi air suspension pada kursi pengemudi.
| DIMENSI | mm | 7.19 |
| Jarak Sumbu Roda | mm | 7.19 |
| Panjang Keseluruhan | mm | 11.925 |
| Lebar Keseluruhan | mm | 2.492 |
| Tinggi keseluruhan | mm | 2.72 |
| Jarak roda depan kiri-kanan | mm | 1.925 |
| Jarak roda belakang kiri-kanan | mm | 1.845 |
| BERAT | ||
| Berat Chassis | kg | 7.33 |
| Max G.V.W | kg | 26 |
| Berat Chassis | Depan (kg) | 3.145 |
| Berat Chassis | Belakang (kg) | 4.185 |
| Max G.V.W | Depan (kg) | 6000 |
| Max G.V.W | Belakang (kg) | 20000 |
| KEMAMPUAN | ||
| Kecepatan maksimum | km/jam | 90 |
| Daya tanjak dengan max G.V.W | % | 43.5 |
| Radius putar minimum | m | 11 |
| MESIN | ||
| Model | - | 6M60 |
| Tipe | - | 4 Stroke-cycle water cooled direct injection turbocharged diesel engine |
| Diameter X langkah | mm | 118x115 |
| Isi Silinder | cc | 7.545 |
| Daya maksimum | PS/rpm | 270/2.600 |
| Torsi maksimum | Kgm/rpm | 80/1.400 |
| TRANMISI | ||
| Model | - | EATON ES-11109 |
| Tipe | - | 9 gigi maju dan 1 gigi mundur |
| Perbandingan gigi | awal | 12.640 - 8.810 - 6.550 - 4.770 - 3.550 - 2.480 - 1.850 - 1.340 - 1.000 Mundur 13.21 |
| Kopeling | - | Hydraulic control, coil spring type, single dry plate with air pressure assistance |
| Perbandingan gigi | Akhir | 6.166 |
| SUSPENSI | ||
| Depan | - | Laminated leaf springs dengan shock absorbers |
| Belakang | - | Inverted and laminated leaf springs with trunnion base and radius rods |
| REM | ||
| Rem kaki | - | Air over hydraulic dengan sirkuit ganda |
| Rem Tangan | - | Internal expand type pada propeller shaft (Parking brake dia. 305mm) |
| Rem Pembantu | - | Sistem pengereman gas buang |
| SISTEM KELISTRIKAN | ||
| Tegangan | Volt | 24 |
| KAPASITAS BAHAN BAKAR | ||
| Tangki | Liter | 200 |
| KAPASITAS PENGEMUDI | ||
| Kabin pengemudi | - | All steel, tilt cab (Kabin Jungkit) |
| SETIR | ||
| Tipe | - | Ball nut type with integral type power booster. Telescopic & tilt steering coloumn with steering lock |
| RODA | ||
| Roda | Ban Depan | Tunggal, 11.00-20-16PR |
| Roda | Ban Belakang | Ganda, 11.00-20-16PR |
