Fighter FM 65 FSL
240 PS
Fighter FM 65 FSL : 6 Ban
4x2
IDR
Performa
240 PS Common Rail EURO 3
Dengan tenaga 240 PS menggunakan sistem Common Rail yang dikontrol oleh Electronic Control Unit (ECU).
Tipe Karoseri

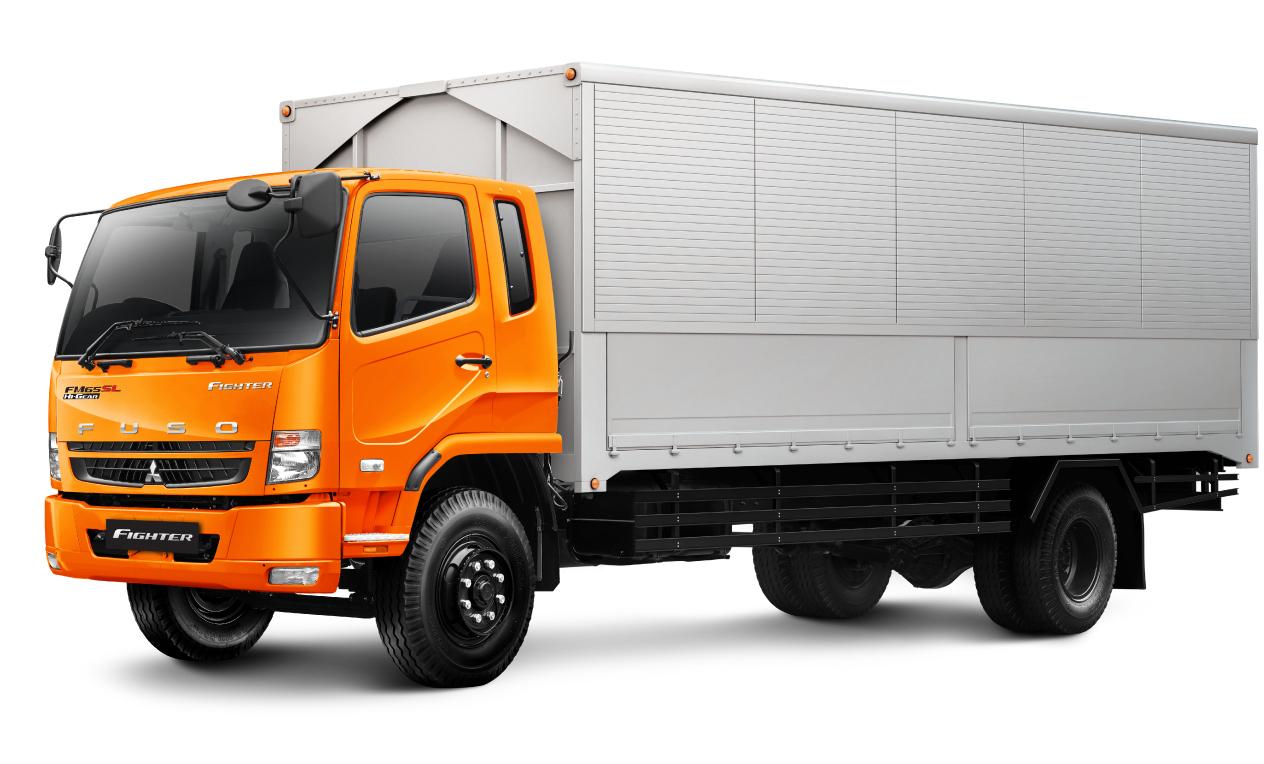

Karoseri Wing Box

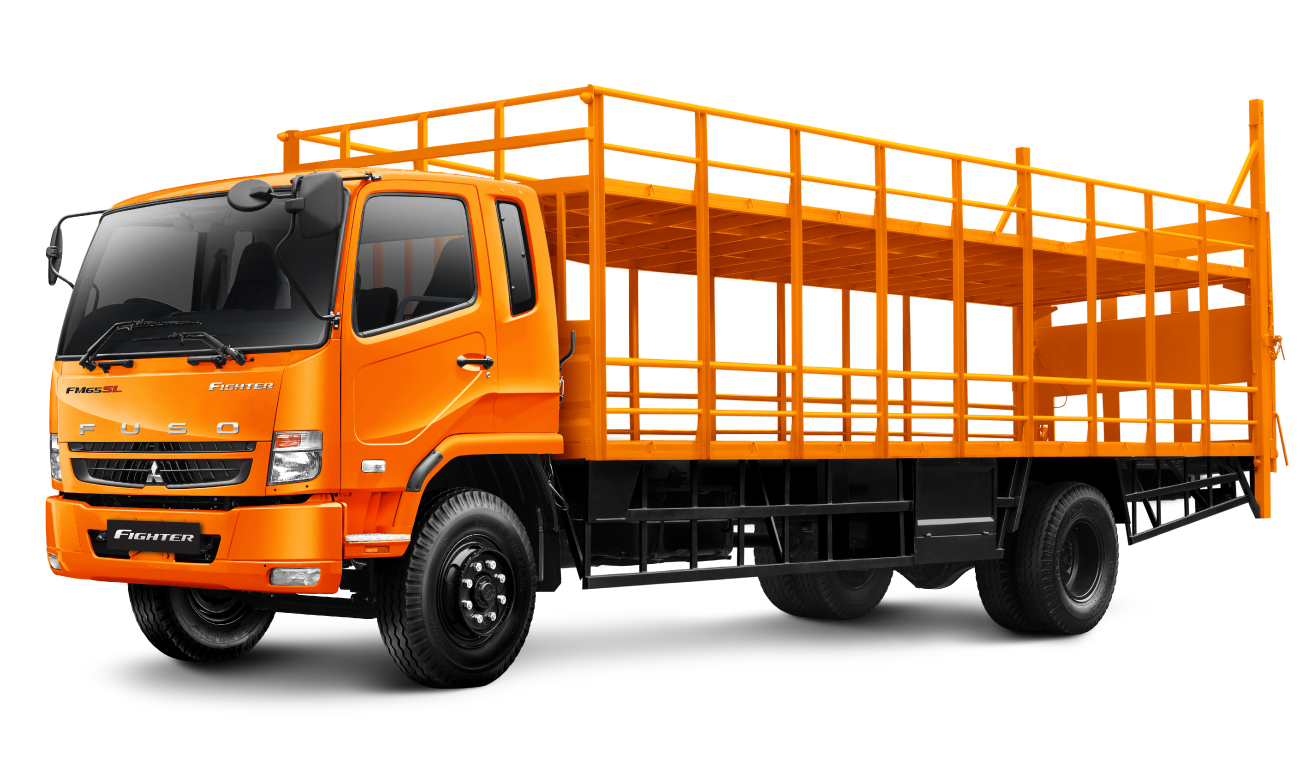

Karoseri Motor Carrier
Karoseri Box Besi

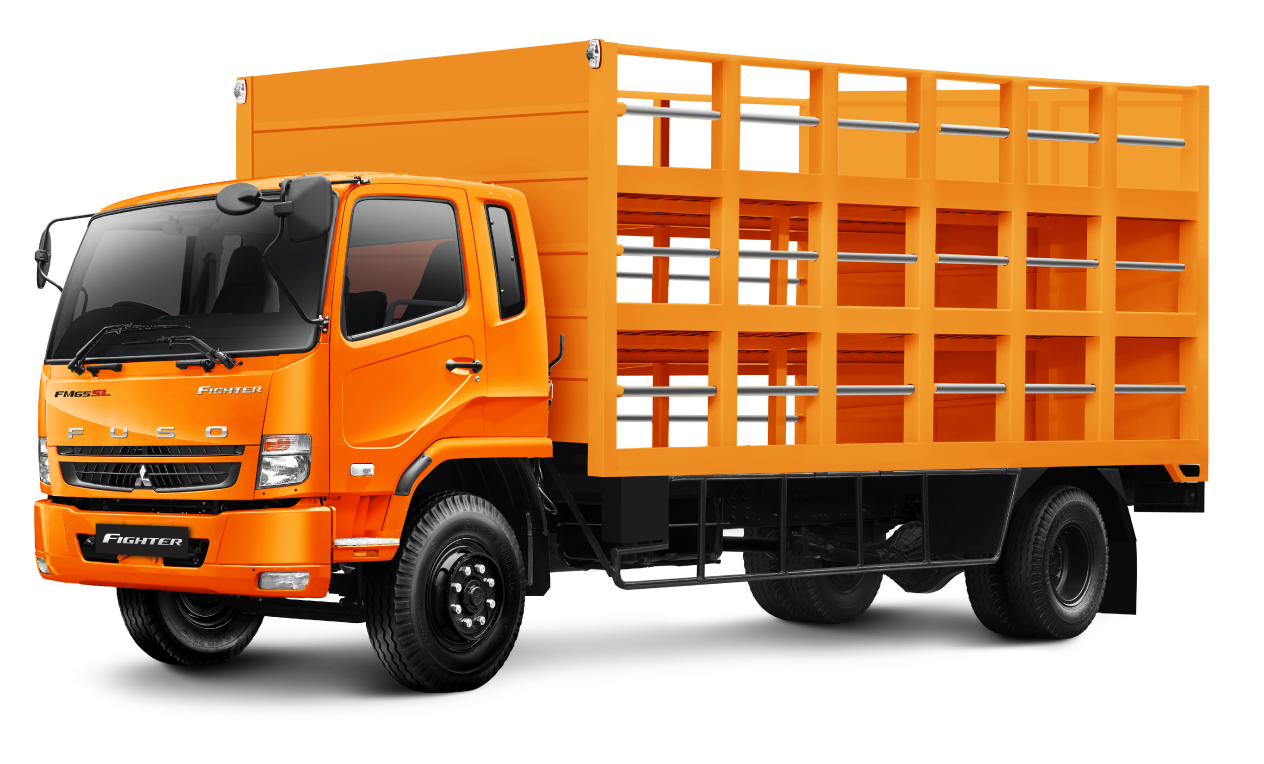

Karoseri Bak Air Galon
Info Produk
Chasis Kuat
Kokoh untuk menopang lebih banyak muatan, didesain tebal dan tanpa sambungan dengan posisi kelingan / rivet di sisi samping untuk meningkatkan daya tahan chassis dan memudahkan pemasangan Rear Body.
Kabin Luas
Ruang kabin luas, dilengkapi air suspension pada kursi pengemudi.
| DIMENSI | ||
| Jarak Sumbu Roda | mm | 6.08 |
| Panjang Keseluruhan | mm | 10.545 |
| Lebar Keseluruhan | mm | 2.455 |
| Tinggi keseluruhan | mm | 2.695 |
| Jarak roda depan kiri-kanan | mm | 1.925 |
| Jarak roda belakang kiri-kanan | mm | 1.845 |
| Cab to End | mm | 8.555 |
| BERAT | ||
| Max G.V.W | Kg | 16 |
| Berat Chassis | Kg | 5.27 |
| KEMAMPUAN | ||
| Kecepatan maksimum | Km/Jam | 92 |
| Daya tanjak dengan max G.V.W | % | 41 |
| Radius putar minimum | m | 10 |
| MESIN | ||
| Model | - | 6M60-1AT1 |
| Tipe | - | Common Rail System, 4 Stroke-cycle water cooled direct injection turbocharged diesel engine |
| Diameter X langkah | mm | 118 x 115 |
| Isi Silinder | cc | 7.545 |
| Daya maksimum | PS/rpm | 240 / 2600 |
| Torsi maksimum | Kg.m/rpm | 70 / 1400 |
| TRANMISI | ||
| Model | - | M8S6 |
| Tipe | - | 6 Forw. & 1 Rev. |
| Perbandingan gigi | - | 7.814 - 4.506 - 2.690 - 1.621 - 1.000 - 0.894 - perbandingan gigi akhir 6.849 |
| SETIR | ||
| Tipe | - | Ball nut type with integral type power booster. Telescopic and tilt steering column with steering lock |
| SUSPENSI | ||
| Depan | - | Laminated Leaf Springs with Shock Absorbers |
| Belakang | - | Laminated leaf spring |
| REM | ||
| Rem kaki | - | Air Over Hydraulic with Dual Circuit |
| Rem Tangan | - | Internal expanding type on propeller shaft (Parking brake dia. 305mm) |
| Rem Pembantu | - | Exhaust brake |
| RODA | ||
| Roda | Ban Depan | Tunggal, 10.00-20-16PR |
| Roda | Ban Belakang | Ganda, 10.00-20-16PR |
| SISTEM KELISTRIKAN | ||
| Tegangan | Volt | 24 |
| Accu | Volt | 2x12V, 56Ah (5hr rate) ; 70Ah (20hr rate) |
| KAPASITAS BAHAN BAKAR | ||
| Tangki | Liter | 200 |
