Colt Diesel Turbo Intercooler
125 PS
FE 74 L : 6 Ban
Super Capacity
IDR 348,300,000
OFF THE ROAD (Chassis Only) *referensi harga JABODETABEK per April 2017
Performa
Tipe Mesin

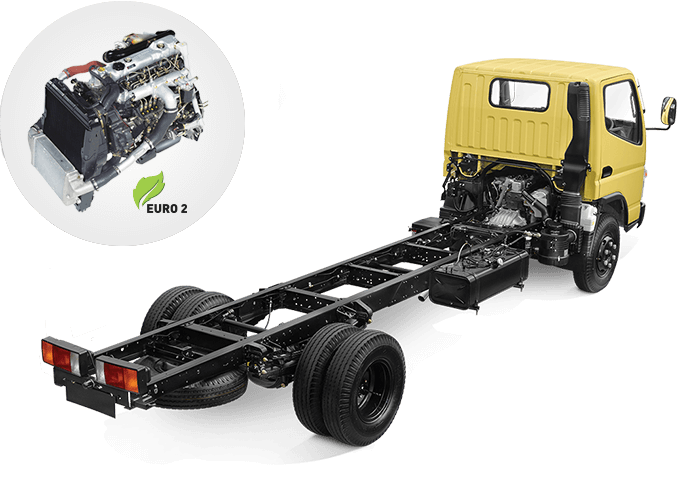

Mesin tangguh dan chassis kokoh. Mesin 4D34-2AT8 Turbo Intercooler, Irit, bertenaga dan tahan lama.
Chassis
Chassis kokoh, tangguh, dan lebih panjang.
Tipe Karoseri

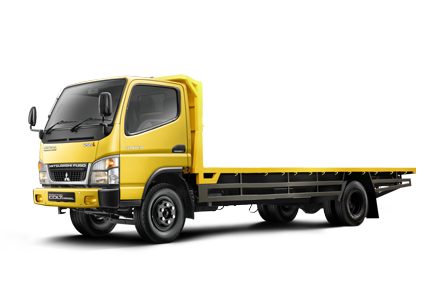

Flat Deck

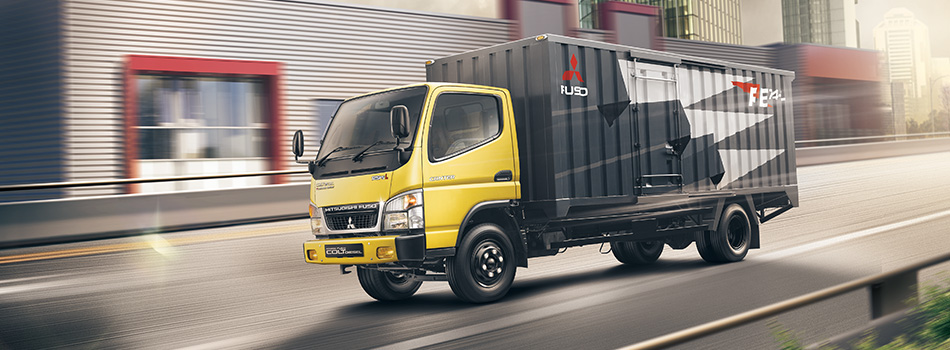

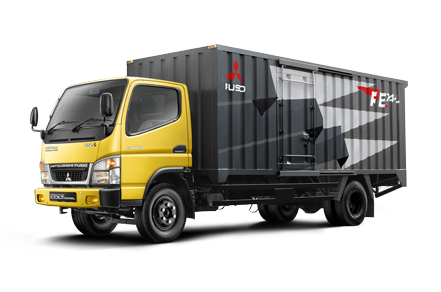

Box Aluminium

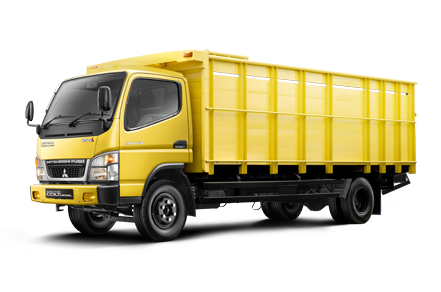

Bak Kayu
Info Produk

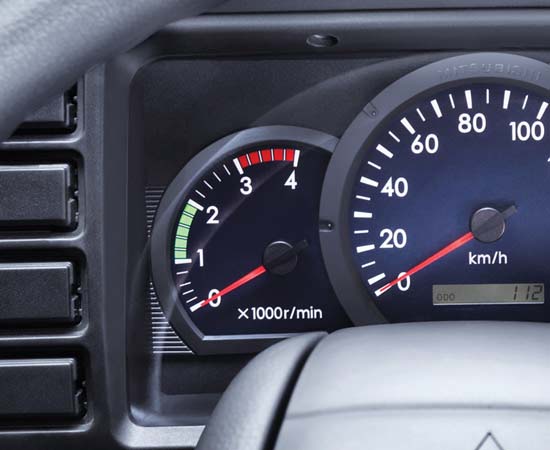

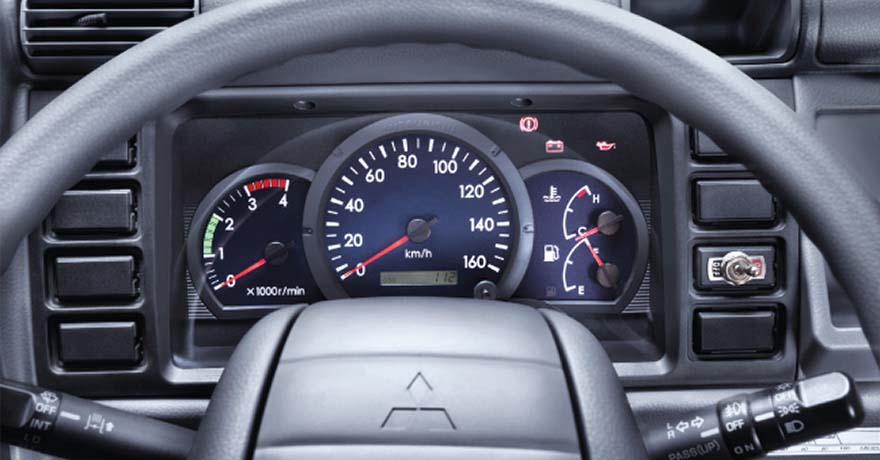

Tachometer
Mempermudah penyelarasaan putaran mesin dengan kecepatan kendaraan agar irit BBM.

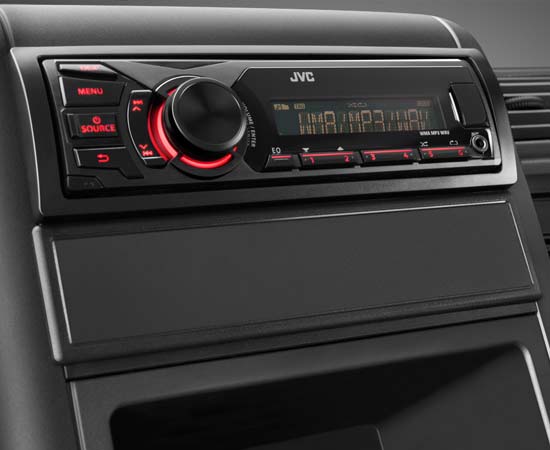

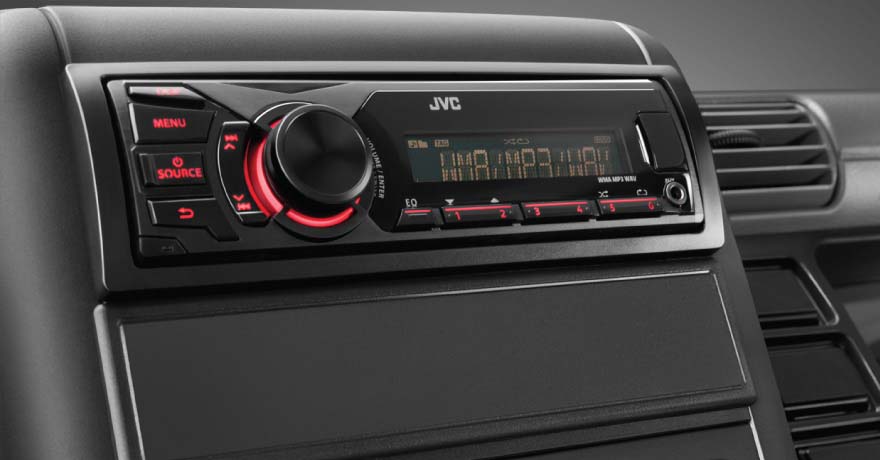

Radio/USB/MP3
Menambah kenyamanan dan menemani sepanjang perjalanan
| MODEL | FE 74 L | |

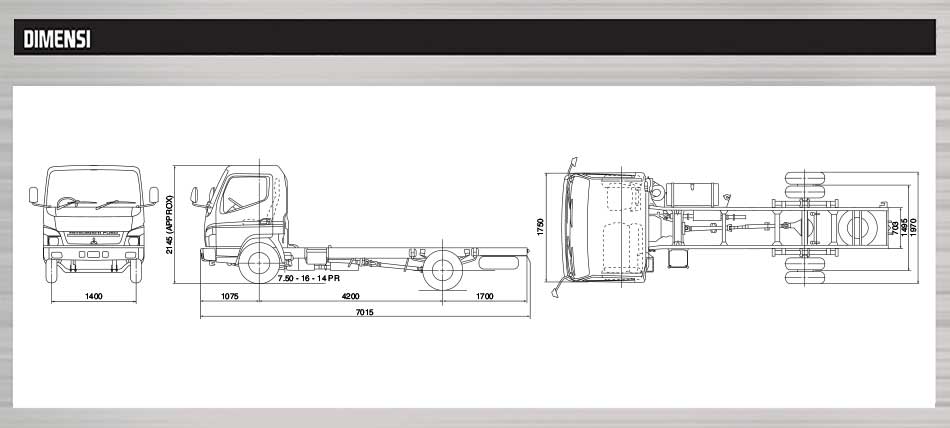

| Dimensi | ||
| Jarak Sumbu Roda | mm | 4.200 |
| Panjang Keseluruhan | mm | 7.015 |
| Lebar keseluruhan | mm | 1.970 |
| Tinggi keseluruhan | mm | 2.145 |
| Tinggi minimal dari tanah | mm | 210 |
| Jarak roda depan kiri-kanan | mm | 1.400 |
| Jarak roda belakang kiri-kanan | mm | 1.495 |
| Berat | ||
| Berat Chassis | kg | 2.345 |
| Max G.V.W | kg | 7.500 |
| Max G.C.W | kg | |
| Berat Chassis | kg | |
| Kemampuan | ||
| Kecepatan maksimum | km/jam | 120 |
| Daya tanjak dengan max G.V.W | tan | 32 |
| Radius putar minimum | m | 8.6 |
| Roda | ||
| Roda | 7.50-16-14PR | |
| Velg | 16x6.00GS , 6 studs | |
| Mesin | ||
| Model | 4D34-2AT8 | |
| Tipe | 4 langkah, direct injection, mesin diesel pendingin air dengan turbo intercooler | |
| Diameter X langkah | mm | 104x115 |
| Jumlah silinder | cc | 4 sejajar |
| Isi S silinder | 3.908 | |
| Daya maksimum | PS/rpm | 125/2.900 |
| Torsi maksimum | Kg.m/rpm | 33/1.600 |
| Isi Silinder | ||
| Isi Silinder | ||
| Transmisi | ||
| Model | M035S5 | |
| Tipe | 5 gigi maju dan 1 gigi mundur, 1-5 synchromesh, gigi mundur constantmesh | |
| Perbandingan gigi | 5.380-3.028-1.700-1.000-0.722 Mundur 5.380 | |
| Kopeling | Pelat kering tunggal, C4W30D | |
| AS | ||
| Depan | Reverse Elliot, type "I" Beam | |
| Belakang | Full Floating Type | |
| Perbandingan gigi akhir | 5.571 | |
| Setir | ||

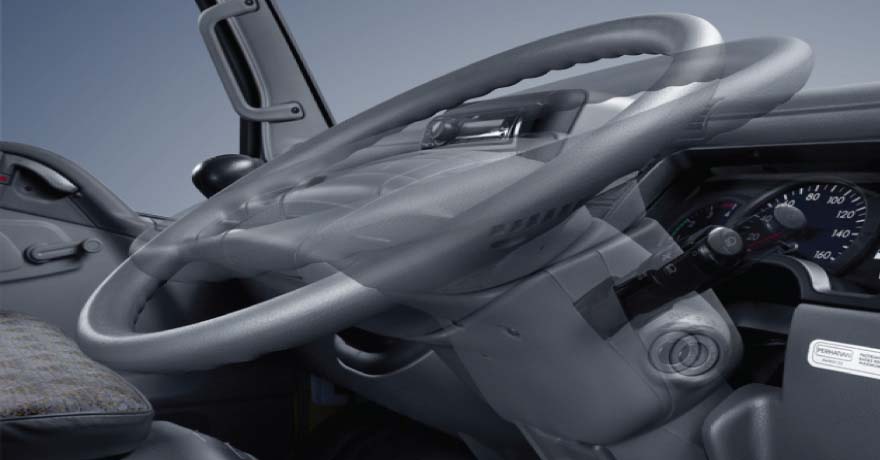

| Tipe | Ball nut type with power steering, tilt & telescopic steering column | |
| Suspensi | ||
| Depan | Laminated leaf springs dengan shock absorber | |
| Belakang | Laminated leaf springs dengan shock absorber | |
| Rem | ||
| Rem kaki | Sistem Hidraulis dengan Vacuum Servo Assistance, Dual Circuit | |
| Rem Tangan | Tipe internal expanding di bagian belakang transmisi | |
| Rem Pembantu | Sistem pengereman gas buang | |
| Sistem kelistrikan | ||
| Tegangan | ||
| Accu | 24 V | |
| Kapasitas bahan bakar | ||
| Tangki | liter | 100 |
| Kapasitas pengemudi | ||
| Kabin pengemudi | ||
