Colt Diesel Turbo Intercooler
110 PS
FE 71 BUS CHASSIS : 4 Ban
Bus
IDR 286,000,000
OFF THE ROAD (Chassis Only) *referensi harga JABODETABEK per April 2017
Performa
Tipe Mesin

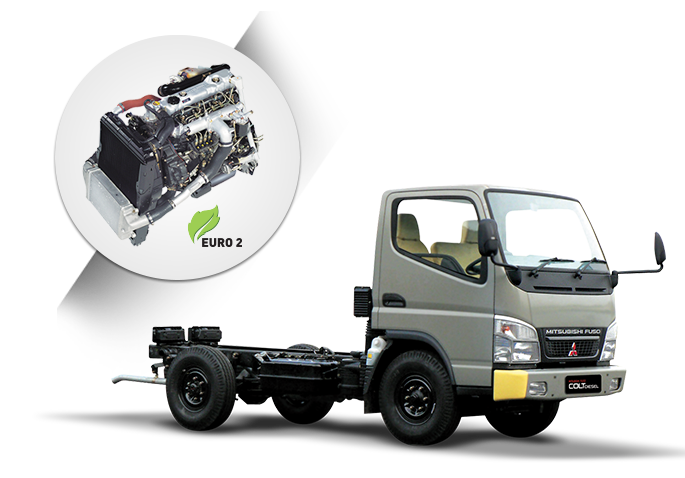

Mesin tangguh dan chassis extra panjang. MESIN 4D34-2AT5 TURBO INTERCOOLER, Irit, bertenaga dan tahan lama.
Chassis
Chassis kokoh dan tangguh, menjadikan lebih stabil.
Info Produk

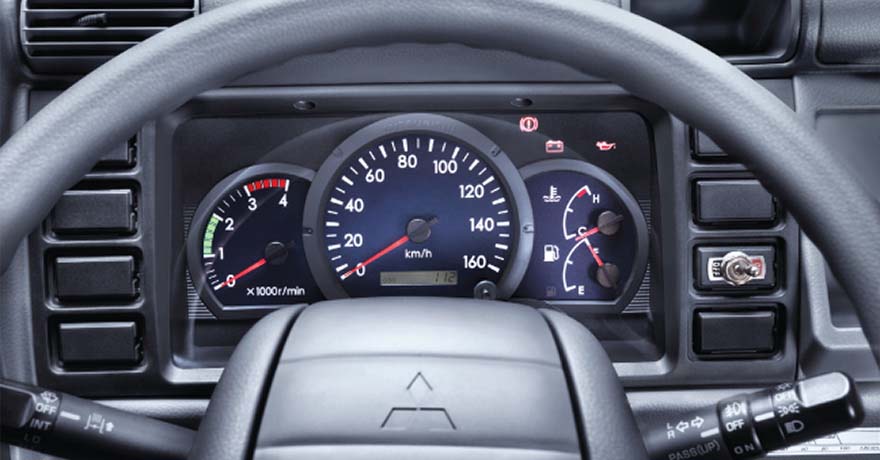

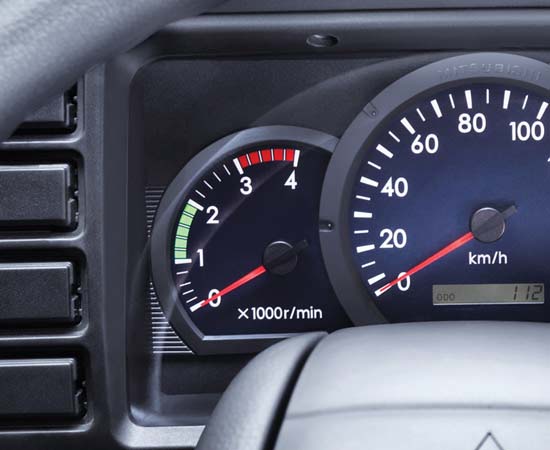

Tachometer
Mempermudah penyelarasaan putaran mesin dengan kecepatan kendaraan agar irit BBM.

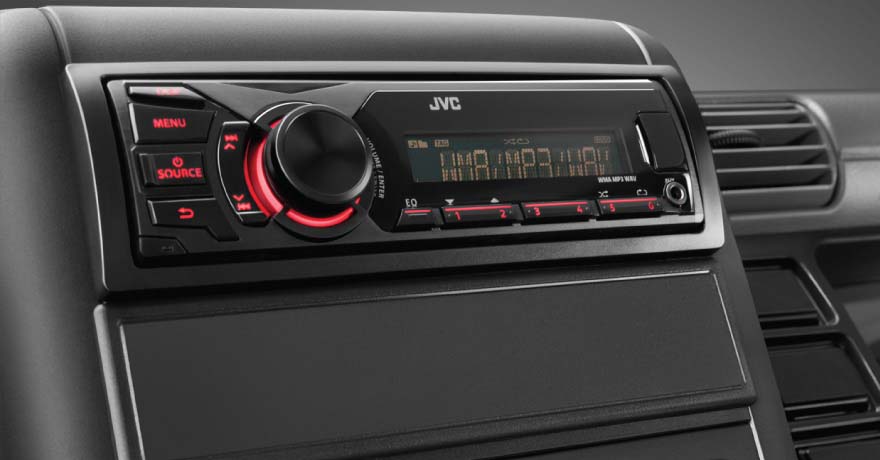

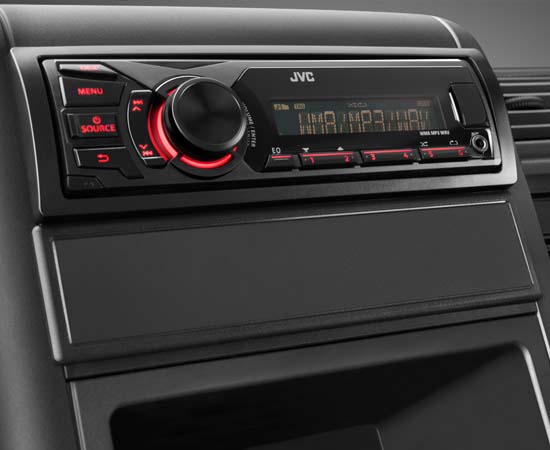

Radio/USB/MP3
Menambah kenyamanan dan menemai sepanjang perjalanan
| MODEL | FE 71 BUS CHASSIS | |

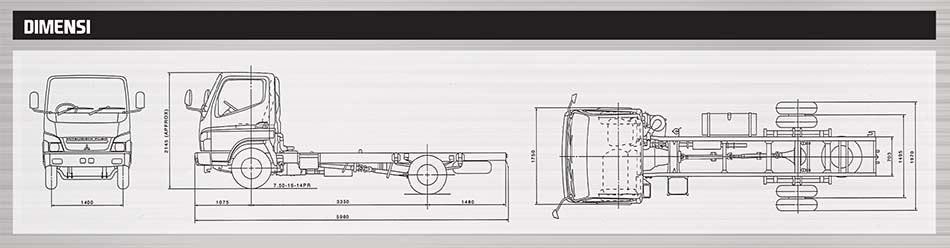

| Dimensi | ||
| Jarak Sumbu Roda | mm | 2.500 |
| Panjang Keseluruhan | mm | 4.890 |
| Lebar keseluruhan | mm | 1.750 |
| Tinggi keseluruhan | mm | 2.055 |
| Tinggi minimal dari tanah | mm | 200 |
| Jarak roda depan kiri-kanan | mm | 1.390 |
| Jarak roda belakang kiri-kanan | mm | 1.380 |
| Berat | ||
| Berat Chassis | kg | 1.790 |
| Max G.V.W | kg | 5.150 |
| Max G.C.W | kg | |
| Berat Chassis | kg | |
| Kemampuan | ||
| Kecepatan maksimum | km/jam | 116 |
| Daya tanjak dengan max G.V.W | tan | 35.0 |
| Radius putar minimum | m | 5.1 |
| Roda | ||
| Roda | 7.50-15-12PR | |
| Velg | 15x5.50F, 6 studs | |
| Mesin | ||
| Model | 4D34-2AT5 | |
| Tipe | 4 langkah, direct injection, mesin diesel pendingin air dengan turbo intercooler | |
| Diameter X langkah | mm | 104x115 |
| Jumlah silinder | cc | 4 sejajar |
| Isi S silinder | 3.908 | |
| Daya maksimum | PS/rpm | 110/2.900 |
| Torsi maksimum | Kg.m/rpm | 28/1.600 |
| Isi Silinder | ||
| Isi Silinder | ||
| Transmisi | ||
| Model | M025S5 | |
| Tipe | 5 gigi maju dan 1 gigi mundur, 1-5 synchromesh, gigi mundur constantmesh | |
| Perbandingan gigi | 5.181-2.865-1.593-1.000-0.739 Mundur 5.181 | |
| Kopeling | Pelat kering tunggal, C3W28D | |
| AS | ||
| Depan | Reverse Elliot, type "I" Beam | |
| Belakang | Full Floating Type | |
| Perbandingan gigi akhir | 4.875 | |
| Setir | ||

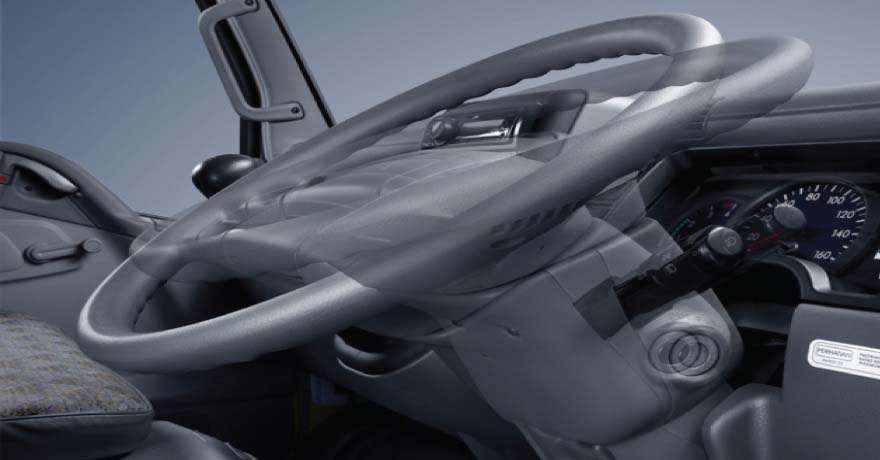

| Tipe | Tilt & telescopic | |
| Suspensi | ||
| Depan | Laminated leaf springs dengan shock absorber | |
| Belakang | Laminated leaf springs dengan shock absorber | |
| Rem | ||
| Rem kaki | Sistem Hidraulis dengan Vacuum Servo Assistance, Dual Sircuit | |
| Rem Tangan | Tipe Internal expanding dibagian belakang transmisi | |
| Rem Pembantu | Sistem pengereman gas buang | |
| Sistem kelistrikan | ||
| Tegangan | ||
| Accu | 24 V | |
| Kapasitas bahan bakar | ||
| Tangki | liter | 70 |
| Kapasitas pengemudi | ||
| Kabin pengemudi | ||
