Triton

Exceed AT 4x4

IDR 430,000,000

*OTR Jabodetabek

Triton

Exceed MT 4x4

IDR 416,000,000

*OTR Jabodetabek

Triton

GLS MT D-Cabin 4x4

IDR 390,500,000

*OTR Jabodetabek

Triton

HDX MT D-Cabin 4x4

IDR 367,000,000

*OTR Jabodetabek

Triton

HDX MT Single Cabin 4x4

IDR 311,000,000

*OTR Jabodetabek

Triton

GLX MT 4x2 Single Cabin

IDR 228,000,000

*OTR Jabodetabek

Triton

GLX MT 4x2 Cab-Chassis

IDR 223,000,000

*OTR Jabodetabek

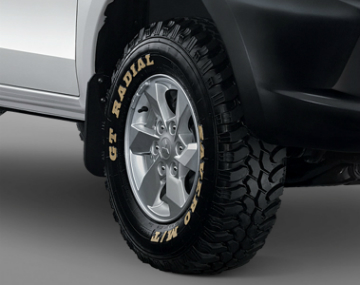

Alloy Wheel (HD-X)

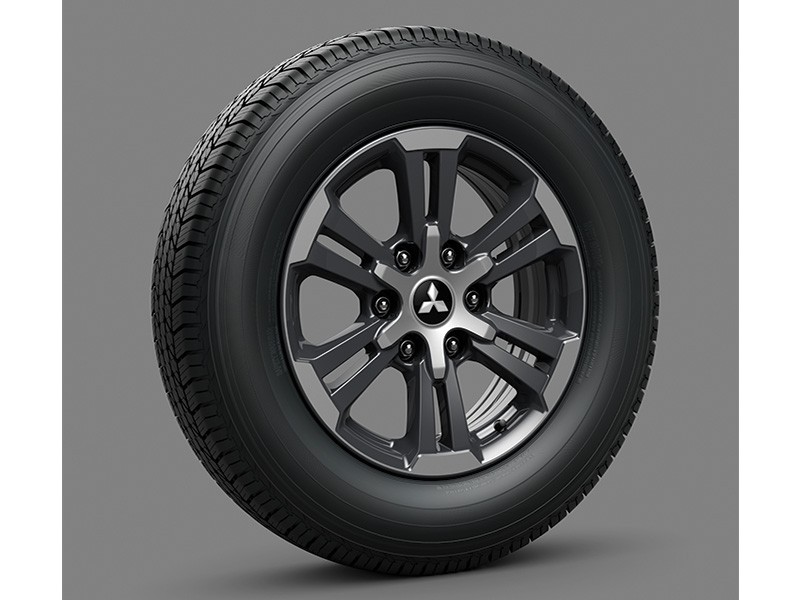

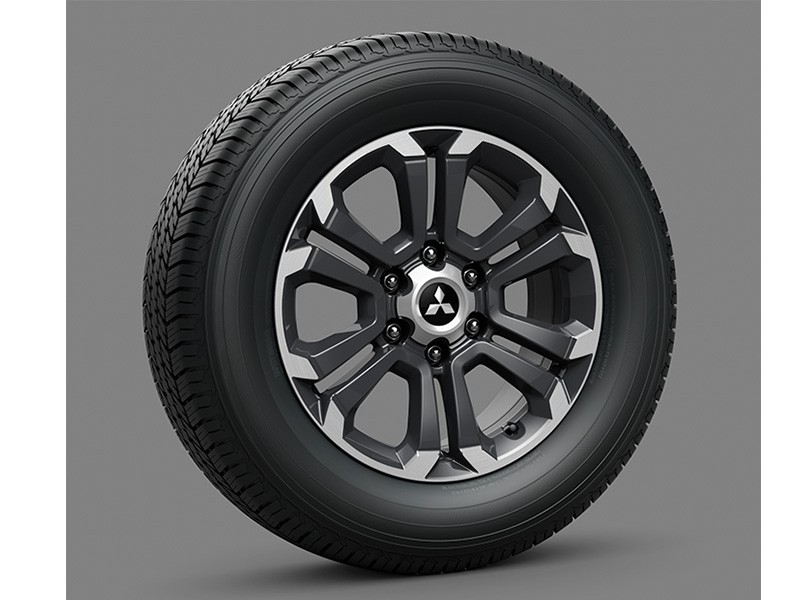

Alloy Wheel (Exceed & GLS)
Grill (Exceed & GLS)

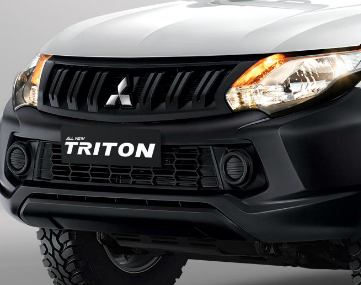

Grill (HD-X)

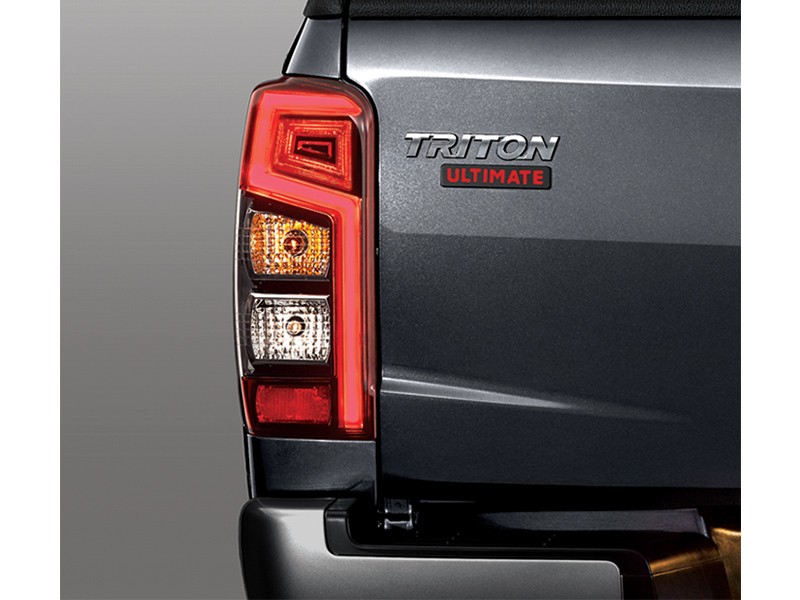

Rear Combination Lamp (Exceed & GLS)
Alloy Wheel (HD-X)
Alloy Wheel (Exceed & GLS)
Grill (Exceed & GLS)
Grill (HD-X)
Rear Combination Lamp (Exceed & GLS)

Specifications

Item Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Overall Length mm 5,080 5,205 5,205 5,255 5,255
Overall Width mm 1,785 1,785 1,815 1,815 1,815
Overall Height mm 1,795 1,775 1,795 1,795 1,795
Wheel Base mm 3,000 3,000 3,000 3,000 3,000
Front Tread mm 1520 1520 1520 1520 1520
Rear Tread mm 1515 1515 1515 1515 1515
Ground Clearence mm 220 220 220 220 220
Curb Weight mm 1,730 1,845 1,860 1,900 1,905
Gross Vehicle Weight (GVW) mm 2,760 2,850 2,850 2,870 2,900
Item Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Model 4D56 DI C/R T/C 4D56 DI C/R T/C 4D56 DI C/R I/C T/C 4D56 DI C/R I/C T/C 4D56 DI C/R I/C T/C
Type DOHC 16 Valve, inline 4-Cylinder Direct Diesel Injection DOHC 16 Valve, inline 4-Cylinder Direct Diesel Injection Turbocharger DOHC 16 Valve, inline 4-Cylinder Direct Diesel Injection Turbocharger DOHC 16 Valve, inline 4-Cylinder Direct Diesel Injection Turbocharger DOHC 16 Valve, inline 4-Cylinder Direct Diesel Injection Turbocharger
Displacement CC 2,477 2,477 2,477 2,477 2,477
Bore x Stroke mm 91.1 x 95.0 91.1 x 95.0 91.1 x 95.0 91.1 x 95.0 91.1 x 95.0
Compression Ratio 17 17 17 16.5 16.5
Max Power Output PS(kW) / rpm 110 (81) / 4000 110 (81) / 4000 136 (100) / 4000 178 (131) / 4000 178 (131) / 4000
Max Torque Output Kg.m(N.m) / rpm 20.4 (200) / 1500 - 3500 20.4 (200) / 1500 - 3500 33.1 (324) / 2000 40.8 (400) / 2000
Item Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Type 5 Speed M/T 5 Speed M/T 5 Speed M/T 5 Speed M/T 5 Speed A/T
Gear Ratio 1st 3,967 3,967 4,313 4,313 3,520
Gear Ratio 2nd 2,136 2,136 2,330 2,330 2,042
Gear Ratio 3rd 1,360 1,360 1,436 1,436 1,400
Gear Ratio 4th 1,000 1,000 1,000 1,000 1,000
Gear Ratio 5th 0.856 0.856 0,788 0,788 0.716
Gear Ratio Reverse 3,578 3,578 4,220 4,220 3,224
Gear Ratio Final 4,636 4,636 4,090 3,917 3,917
LSD Mechanical type Mechanical type Hybrid type Hybrid type Hybrid type
Transfer High 1,000 1,000 1,000 1,000 1,000
Transfer Low 1,925 1,925 1,900 1,900 2,566
4 WD System Easy Select 4WD Easy Select 4WD Easy Select 4WD Easy Select 4WD Easy Select 4WD
Item Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Front Type Independent Wishbone, Coil Spring, Telescopic Shock Absorber, Torsion Bar Stabilizer Independent Wishbone, Coil Spring, Telescopic Shock Absorber, Torsion Bar Stabilizer Independent Wishbone, Coil Spring, Telescopic Shock Absorber, Torsion Bar Stabilizer Independent Wishbone, Coil Spring, Telescopic Shock Absorber, Torsion Bar Stabilizer Independent Wishbone, Coil Spring, Telescopic Shock Absorber, Torsion Bar Stabilizer
Rear Type Rigid Axle, Eliptic Leaf Spring, Telescopic Shock Absorber Rigid Axle, Eliptic Leaf Spring, Telescopic Shock Absorber Rigid Axle, Eliptic Leaf Spring, Telescopic Shock Absorber Rigid Axle, Eliptic Leaf Spring, Telescopic Shock Absorber Rigid Axle, Eliptic Leaf Spring, Telescopic Shock Absorber
Heavy Duty Suspension Not Available Not Available Not Available Not Available Not Available
Item Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Brake Front Ventilated Disc Ventilated Disc Ventilated Disc Ventilated Disc Ventilated Disc
Brake Rear Drum Drum Drum Drum Drum
LSPV (Load Sensing Proportioning Valve) Available Available Not Available Not Available Not Available
ABS & EBD Not Available Not Available Available Available Available
tem Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Type Commonrail Commonrail Commonrail Commonrail Commonrail
Tank Capacity ltr 75 75 75 75 75
Item Single Cabin HDX Double Cabin HDX
Size Front 245 / 75 / R16
Size Rear 245 / 75 / R16
Wheel Disc 16"
Spare Wheel 245/75R16
Item Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Produced at Mitsubishi Motors(Thailand)., Ltd. Mitsubishi Motors(Thailand)., Ltd. Mitsubishi Motors(Thailand)., Ltd. Mitsubishi Motors(Thailand)., Ltd. Mitsubishi Motors(Thailand)., Ltd.

Color Options

Deep Black Mica

Deep Red Solid

Deep Silver Metallic

Titanium Grey Metallic

White Solid
